4-1BB/TNFRSF9 Protein, Mouse (HEK293, C-hFc)

Cat. No.: HY-P7447A
SDS COA Handling Instructions

The 4-1BB/TNFRSF9 protein (TNFSF9/4-1BBL receptor) sends critical signals that enhance the survival, cytotoxicity, and mitochondrial activity of CD8(+) T cells, thereby promoting immunity against viruses and tumors.Mainly a homodimer, it can exist in a monomeric state.4-1BB/TNFRSF9 Protein, Mouse (HEK293, C-hFc) is the recombinant mouse-derived 4-1BB/TNFRSF9 protein, expressed by HEK293 , with C-hFc labeled tag.

For research use only. We do not sell to patients.

Surface Plasmon Resonance (SPR) Assay Service   Protein Expression Service

Size Price Stock Quantity
Free Sample   Apply now
2 μg $35 In-stock
10 μg $90 In-stock
50 μg $250 In-stock
100 μg $425 In-stock
500 μg $1190 In-stock
> 500 μg   Get quote

* Please select Quantity before adding items.

Top Publications Citing Use of Products
  • Biological Activity

  • Technical Parameters

  • Properties

  • Documentation

Description

The 4-1BB/TNFRSF9 protein (TNFSF9/4-1BBL receptor) sends critical signals that enhance the survival, cytotoxicity, and mitochondrial activity of CD8(+) T cells, thereby promoting immunity against viruses and tumors.Mainly a homodimer, it can exist in a monomeric state.4-1BB/TNFRSF9 Protein, Mouse (HEK293, C-hFc) is the recombinant mouse-derived 4-1BB/TNFRSF9 protein, expressed by HEK293 , with C-hFc labeled tag.

Background

4-1BB/TNFRSF9 Protein, functioning as the receptor for TNFSF9/4-1BBL, plays a pivotal role in conveying signals that augment CD8(+) T-cell survival, cytotoxicity, and mitochondrial activity, thereby contributing to enhanced immunity against viruses and tumors. It predominantly exists as a homodimeric structure, with the possibility of monomeric states. The association with key signaling molecules, including p56-LCK and interactions with TRAF1, TRAF2, and TRAF3, underscores its importance in mediating intracellular pathways essential for promoting immune responses and regulatory functions.

In Vitro

4-1BB (hamster ovary; 5 μg/mL; 16 h) costimulates B lymphocyte proliferation[4].

Biological Activity

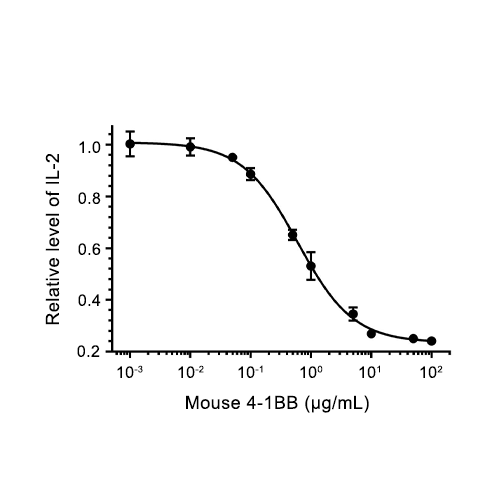

Measured by its ability to block 4-1BBL-induced IL-2 secretion by mouse CTLL-2 cells. The ED50 for this effect is 0.603 μg/mL in the presence of 10 μg/mL anti-CD3, corresponding to a specific activity is 1.66×10^3 U/mg.

  • Measured by its ability to block 4-1BBL-induced IL-2 secretion by mouse CTLL-2 cells. The ED50 for this effect is 0.603 μg/mL in the presence of 10 μg/mL anti-CD3, corresponding to a specific activity is 1.66×103 U/mg.
Species

Mouse

Source

HEK293

Tag

C-hFc

Accession

P20334 (V24-L187)

Gene ID
Molecular Construction
N-term
4-1BB (V24-L187)
Accession # P20334
hFc
C-term
Synonyms
rMu4-1BB/TNFRSF9, C-Fc; CD137; 4-1 BB; TNFRSF-9
AA Sequence

VQNSCDNCQPGTFCRKYNPVCKSCPPSTFSSIGGQPNCNICRVCAGYFRFKKFCSSTHNAECECIEGFHCLGPQCTRCEKDCRPGQELTKQGCKTCSLGTFNDQNGTGVCRPWTNCSLDGRSVLKTGTTEKDVVCGPPVVSFSPSTTISVTPEGGPGGHSLQVL

Molecular Weight

approximately 58.72 kDa

Purity
  • Greater than 95% as determined by reducing SDS-PAGE.
Appearance

Lyophilized powder.

Formulation

Lyophilized from a 0.2 μm filtered solution of 20 mM MES, 150 mM NaCl, pH 5.5.

Endotoxin Level

<1 EU/μg, determined by LAL method.

Reconstitution

It is not recommended to reconstitute to a concentration less than 100 μg/mL in ddH2O. For long term storage it is recommended to add a carrier protein (0.1% BSA, 5% HSA, 10% FBS or 5% Trehalose).

Storage & Stability

Stored at -20°C for 2 years. After reconstitution, it is stable at 4°C for 1 week or -20°C for longer (with carrier protein). It is recommended to freeze aliquots at -20°C or -80°C for extended storage.

Shipping

Room temperature in continental US; may vary elsewhere.

Documentation

4-1BB/TNFRSF9 Protein, Mouse (HEK293, C-hFc) Related Classifications

Help & FAQs
  • Do most proteins show cross-species activity?

    Species cross-reactivity must be investigated individually for each product. Many human cytokines will produce a nice response in mouse cell lines, and many mouse proteins will show activity on human cells. Other proteins may have a lower specific activity when used in the opposite species.

  • Reconstitution Calculator

  • Dilution Calculator

  • Specific Activity Calculator

The reconstitution calculator equation

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration

Volume (to add to vial) = Mass (in vial) ÷ Desired Reconstitution Concentration
= ÷

The dilution calculator equation

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

This equation is commonly abbreviated as: C1V1 = C2V2

Concentration (start) × Volume (start) = Concentration (final) × Volume (final)
× = ×
C1   V1   C2   V2

The specific activity calculator equation

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)

Specific Activity (Unit/mg) = 106 ÷ Biological Activity (ED50)
Unit/mg = 106 ÷ ng/mL
